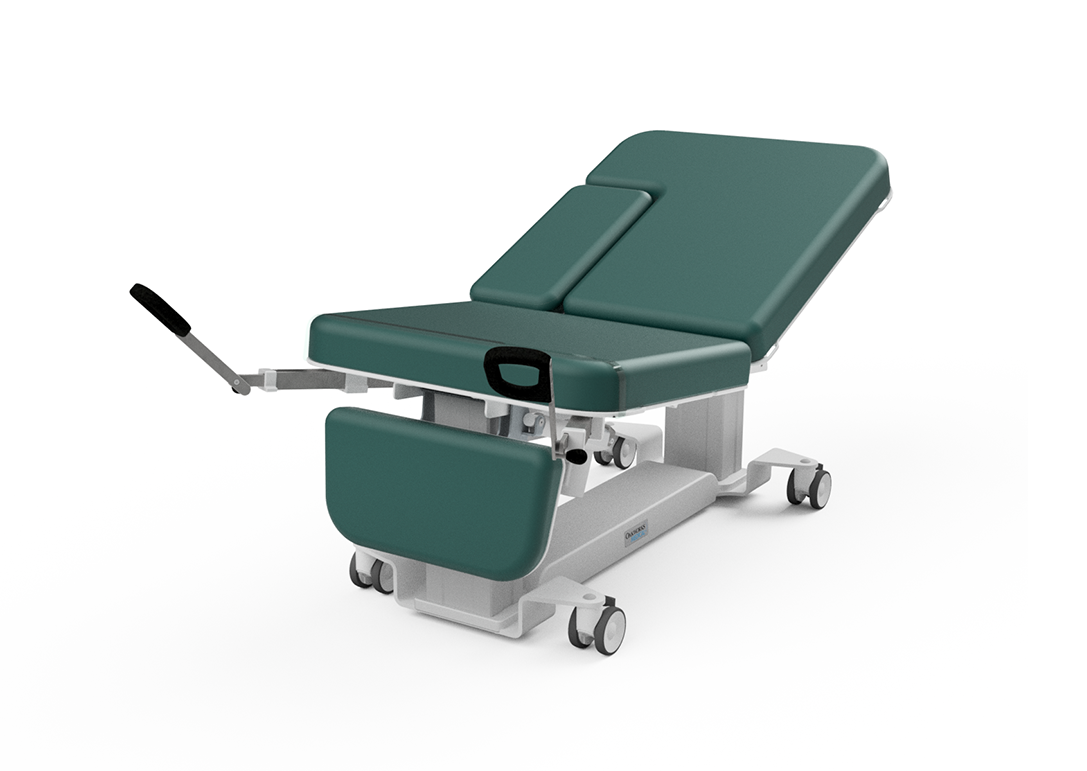

Womens Ultrasound EA Table

MSRP: $7,490.00
Ergonomic Advantage Line

Our EA Line of tables incorporates many ergonomic improvements including all motions being powered, shortening exam times, and making positioning patients easier. All tables come fully assembled with all options installed at Oakworks.

  • ADA 19" low height or 22" - 36" high height
  • Full featured 3 section table top design for all Women's ultrasound modalities
  • 550 lb (250kg) bariatric rated lift & load capacity
  • Twin tower design for added strength & rigidity
  • Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
  • Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

  Get a quote - (717) 759-3146 or medsales@oakworks.com

Quantity
-
+
Product ID 84472
  • Included Features
  • Options
  • Recommended Accessories
  • Product Literature & Videos
  • Images

  • 3 Section Top - 30 in. (76 cm) wide x 72 in. (183 cm) long
  • Backrest - 34 in. (86 cm) long
  • Seat - 26 in. (66cm) long
  • Leg Rest - 11 in. (28cm) long
  • Motion 1 - Electric Height Range: 19" - 33" (48cm-84cm) low height or 22" - 36" (56-91cm) high height
  • Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
  • Motion 3 - Electric Fowler Backrest 0-75°
  • Motion 4 - Electric Leg Rest 0-90°
  • Motion 5 - Access/Back support: Electric 10” wide (25cm) x 22” long (56cm) 0-75° Access/Back support for patient positioning (right side)
  • Controls - Multi-function hand control
  • Weight Capacity - 550lb (250kg)
  • Product Weight - 359lb (163kg)
  • Removable Padding System - 3 in. (8cm) Comfort Foam ™
  • Included Features - 4 in. (10cm) locking casters, Adjustable access back support (right) 0-75°, Paper roll holder, Stirrups
  • Warranty - 3 years parts, 2 years labor
  • Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate
  • Fabric - Premium, PVC free TerraTouch™ Medical Grade Fabric is ISO 10993 Certified
    Upholstery

  • Central Base Locking System
    Central Base Locking System

  • Foot Control - Height, Trendelenburg, Fowler (H-T-B)
  • Side Rails - Set of 2: 25.5” (65cm) long x 6” (15cm) tall(from surface of table)
  • Procedure Tray - 12.25” (6cm) x 10.25” (26cm) and holds 2 quarts (1.9 liters)
    Procedure Tray

  • Battery Backup - Capable of running during power failure
    Battery Backup

  • Stools - Durable & comfortable, support 300 lbs., simple pneumatic height adjustments.
  • Detatchable Arm Board - Use w/ T-Rail adapter 5 in. (13cm) wide x 20.5 in. (52cm) long
  • T-Rail Adapter - 8 in. (20cm) long. Attached to the backrest for use with USA format T-rail attachable accessories
  • Table Extender - 24 in. (61cm) wide x 12 in. (30cm) long
  • QuickLock™ Head Rest (black) & AeroCel Pad - Comfortable, adjustable prone or supine support
